430T/D Cryogenic LNG Production Plants Gas Processing 600000 Nm3/D

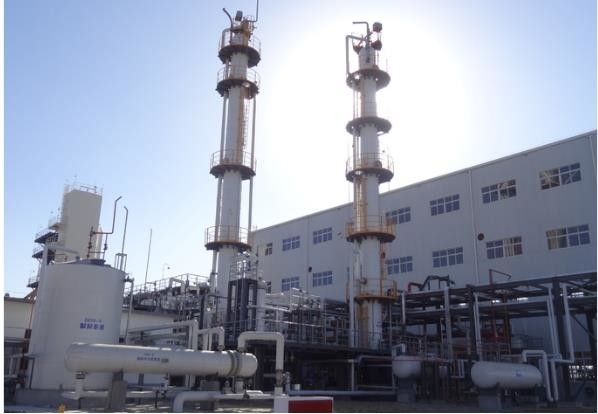

Large Image : 430T/D Cryogenic LNG Production Plants Gas Processing 600000 Nm3/D

Product Details:

Place of Origin:	China
Brand Name:	SASPG
Certification:	ASME/CE/GB
Model Number:	LNG PLANT 600,000 Nm3/d

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	container, wooden case ,bulk
Delivery Time:	8months-18months
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets / Year

Contact Now

430T/D Cryogenic LNG Production Plants Gas Processing 600000 Nm3/D

Description

Features:	Anti Corrosion. Anti Ersoion,etc.	Products:	600,000 Nm3/d LNG PLANT
Material:	Stainless Steel, Carbon Steel, Aluminum	Application:	Liquefied Natural Gas
Type:	Cryogenic, Skid Mounted	Service:	Custom
High Light:	430T/D LNG Production Plant , Cryogenic LNG production plants , LNG gas processing 600000 Nm3/D

430T/D LNG Production LNG Processing Plant 600000 Nm3/D

LNG PLANT 600,000 Nm3/d

SASPG Introduction:

SASPG has developed the natural gas (associated gas) liquefaction and separation technology since 1970s, it specializes in purification and separation of nature gas, coalbed methane, coal-to-gas, coke oven gas and different kinds of various chemical tail gases; as well as the independent process package design, complete set of equipment supply, EPC, commissioning/startup supervision, operator training of liquefaction engineering. The company has obtained B qualification for chemical industry engineering design.

The 500,000Nm3/d associated gas separation plant made by SASPG was awarded the Second Prize for Scientific and Technological Achievements and China National Quality Golden Prize.

Since 1998 , SASPG has exported to Southeast Asia 2 sets of natural gas liquefaction/separation plants with capacity of 45 x 1 O'Nm'/d, 28 x 10'Nm'/d respectively, to Europe one set of natural gas de-nitrification and liquefaction plant with capacity of 100Vd. SASPG has undertaken the research for 2,600,000 T/year LNG localization project issued by the China National Energy Bureau and supplied several sets of 10 x 10'Nm3/d-30 x 10'Nm3/d LNG plants and dozen sets of 50 x 10'Nm3/d-2 00 x 10'Nm3/d LNG plants.

Capacity
1 NG Incoming Capacity	60×104Nm3/d
2 NG Incoming Pressure	~4.5MPa
3 NG Incoming Temperature	0~30℃
4 Operation Flexibility	50~110%
5 Annually Operation Hours	8000 hours
6 Design Working life	20 years
LNG Specifications
1 Output	~430T/d； Converting to gas phase 60×104 Nm3/d
2 Temperature	-163.5℃
3 Storage Pressure	15KPa
4 Main Composition	C1: 97.62%; C2: 0.00%; CO2: 0.26%; N2: 1.80%; O2: 0.32%
Others
1 Venting Acid Gas	0.17×104Nm3/d (design value)
2 Outgoing Gas	N/A
3 BOG	~1.30×104Nm3/d (Cold box throttle flashing and storage tank self-evaporating BOG)

430T/D Cryogenic LNG Production Plants Gas Processing 600000 Nm3/D 0
