High Capacity 2.5MPa LNG Regasification Plants 480000 Nm3/D

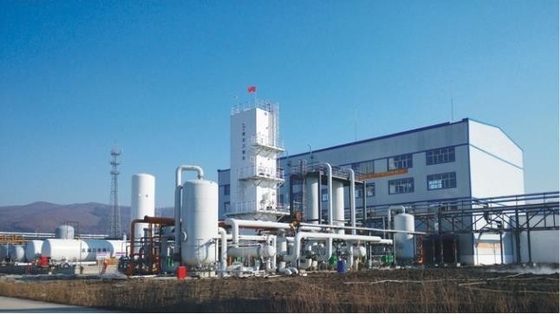

Large Image : High Capacity 2.5MPa LNG Regasification Plants 480000 Nm3/D

Product Details:

Place of Origin:	China
Brand Name:	SASPG
Certification:	ASME/CE/GB
Model Number:	LNG PLANT 480,000 Nm3/d

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	container, wooden case ,bulk
Delivery Time:	8months-18months
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets / Year

Contact Now

High Capacity 2.5MPa LNG Regasification Plants 480000 Nm3/D

Description

Features:	High Performance, High-capacity	Products:	480,000 Nm3/d LNG PLANT
Material:	SS Steel, Carbon Steel, Aluminum	Application:	Liquefied Natural Gas
Type:	Cryogenic, Skid Mounted	Main Composition:	H2: 29.43%; N2: 36%; CO: 34.39%
High Light:	2.5MPa LNG regasification plant , high capacity LNG regasification plant , LNG regasification plants 480000 Nm3/D

2.5MPa LNG Liquefaction LNG Processing Plant 480000 Nm3/D

Project Introduction:

According to the requirements of the owner, SASPG provide the owner with a natural gas liquefaction plant with a capacity of 20,000 Nm3/h. The whole plant includes pretreatment system, liquefaction system and related auxiliary system.

Capacity
1 NG Incoming Capacity	48×104Nm3/d
2 NG Incoming Pressure	2.5MPa
3 NG Incoming Temperature	50℃
4 Operation Flexibility	50~110%
5 Annually Operation Hours	8000 hours
6 Design Working life	20 years
LNG Specifications
1 Output	169t/d(518m3/d)
2 Temperature	-161℃
3 Storage Pressure	15KPa
4 Main Composition	CH4+CnHm: ≥99%; Other: ≤1%
Others(exhaust)
1 Flow	10700Nm3/h
2 Temp.	30℃
3 Pressure	~1.15MPa
4 Main Composition	H2: 29.43%; N2: 36%; CO: 34.39%.

SASPG Introduction:

Since the 1970s, SASPG has developed natural gas (associated gas) liquefaction and separation technology, specializing in the purification and separation of natural gas, coalbed methane, coal-to-gas, coke oven gas and various chemical tail gases; and independent process package design for liquefaction projects , complete equipment supply, EPC, commissioning/start-up supervision, operator training. The company has obtained Class B qualification for chemical engineering design.

The 500,000Nm3/d associated gas separation plant made by SASPG was awarded the Second Prize for Scientific and Technological Achievements and China National Quality Golden Prize.

Since 1998 , SASPG has exported to Southeast Asia 2 sets of natural gas liquefaction/separation plants with capacity of 45 x 1 O'Nm'/d, 28 x 10'Nm'/d respectively, to Europe one set of natural gas de-nitrification and liquefaction plant with capacity of 100Vd. SASPG has undertaken the research for 2,600,000 T/year LNG localization project issued by the China National Energy Bureau and supplied several sets of 10 x 10'Nm3/d-30 x 10'Nm3/d LNG plants and dozen sets of 50 x 10'Nm3/d-2 00 x 10'Nm3/d LNG plants.
