Product Details:
|
| Products Name: | Air Separation Plant | Product Purity: | ≥ 99.6 |
|---|---|---|---|
| Pressure: | 0.3 Bar | Materia: | Gas Sales |
| Feature: | 6500Nm3/h | Delivery Tim: | 8~18 Months |
| High Light: | 99.6% O2 Cryogenic Air Separation Unit,99.6% O2 Sichuan Air Separation Plant,Sichuan Air Separation Plant 6500 Nm3/H |
||

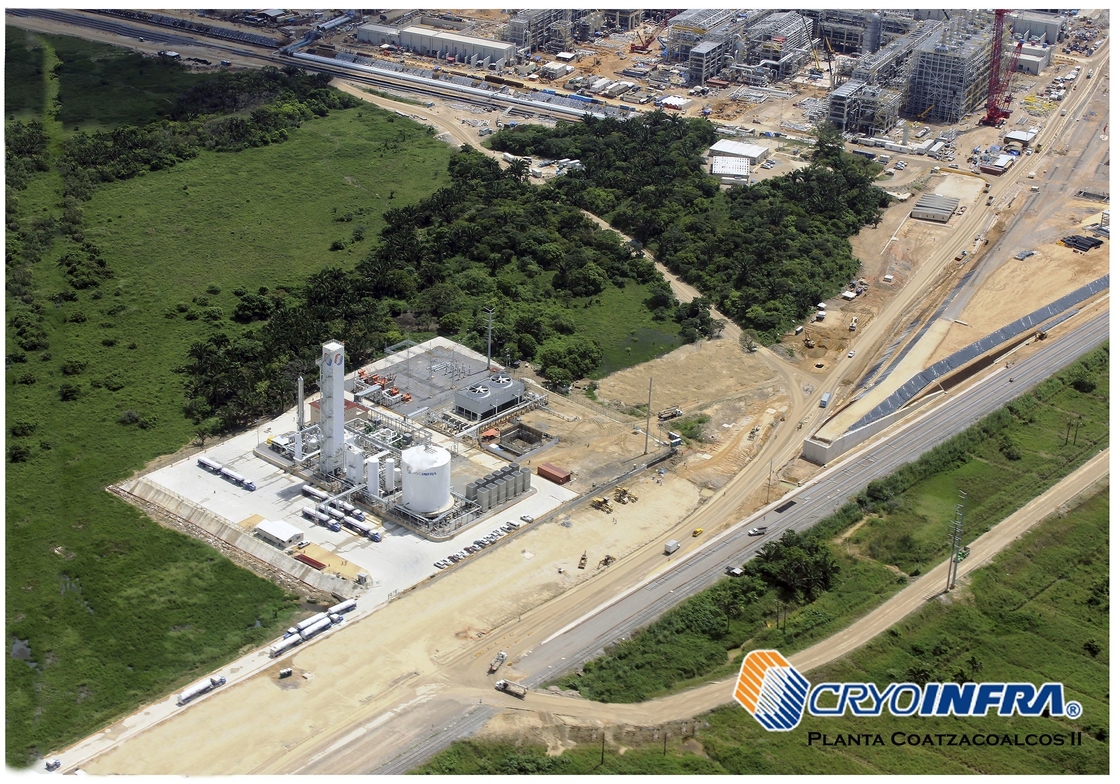

Cryogenic Air Separation Plant 6500Nm3/H for Gas Sales
Cryogenic Air Separation Plant 6500Nm3/H
1. Product Features
Compact cold box to reduced occupied space;
Lower column of convection and sieve tray type with large effective flowing area and excellent rectification function;
Upper column of structural packing type with low resistance to reduce the discharge pressure of the air compressor thus to decrease power consumption;
Main heat exchanger fabricated by vacuum brazing with big section area and aluminum plate-fin type;
Cryogenic valve for the cold box is of aluminum welded structure to reduce the possibility of external leakage;
Stress analysis with the NASTRAN ANALYSIS software for the piping in the cold box. The arrangement of piping inside the cold box is of self- compensation type and the columns and piping are made of aluminum alloy.
2. Product Description
Crogenic air separation plant employs molecular sieve adsorption, booster turbo-expander, structural packing column (upper column, lower column). The whole plant includes: air compression system, air pre-cooling system, molecular sieve purification system, booster turbo-expander system, cold box system, liquid storage system and instrument & electric control system etc.
3. Product Configuration
| Products | Output (Nm3/h) | Pressure bar (G) | Purity |
| LO2 | 1500 (51TPD) | 0.3 | ≥99.6% O2 |
| GOX | 6500 (223TPD) | 0.3 | ≥99.6% O2 |
| GN2 | 8262(248TPD) | 14 | ≥99.999% N2 ≤5PPm O2 ≤1PPm CO ≤1PPm CO2 ≤5PPm H2O |
| GN2 | 3330(100TPD) | 21 | |
| LN2 | 13600 (408TPD) | 0.15 | |
| LAr | 280(12 TPD) | 2 | ≤5PPm N2, ≤3PPm O2 |
4. SASPG Introduction:
Situated in the affluent city of Jianyang, SASPG covers an area of 800000m2 with a floor space up to more than 300000m2.
Since its founding in 1966, the company has kept on increasing its operation scales and in 2014, the annual production capacity reached 50000 tons. Through many years of development, the company has acquired strong investment capability and has already established a number of entities. Currently, the company has 17 holding companies and 7 share holding companies.
As one of the large-sized manufacturers in China, a pivotal enterprise in China's machinery industry, one of the cryogenic equipment design and fabrication bases and also one of the backbone enterprises in Sichuan Provincial critical equipment fabrication industry, SASPG is mainly engaged in the design, fabrication, marketing of large, medium and small air separation plants, cryogenic liquid (cryogenic liquid oxygen, nitrogen, argon, liquid carbon dioxide, ethylene, LNG and liquid hydrogen) tanks, trailers, ISO tanks and vaporizers, super insulated cylinders, vacuum pipes, natural gas (associated gases) liquefaction and separation plants, cryogenic pumps, medium and small-sized piston compressor, cryogenic values and ambient-temperature valves, special valves and medical oxygen central supply system, medical central suction system, purified operation theatres, dissolved acetylene and environmental protection equipment as well as industrial gases production and sales.
SASPG boasts of excellent fabrication facilities, strong technological ability and perfect inspection measures. With a provincial level technical center, Sichuan cryogenic equipment research institute and welding institute, the company is endowed with very strong research & development design and fabrication capability. The technology and performance of the products are in line with state of art. The company has acquired the pressure vessel design and fabrication certificates issued by the Chinese government for Class A1, A2 and C2 pressure equipment and B3 certificate for cylinders, ASME certificate, U & U2 stamps, ISO9001-2008 quality system certification.
SASPG boasts of excellent fabrication facilities, strong technological ability and perfect inspection measures. With a provincial level technical center, Sichuan cryogenic equipment research institute and welding institute, the company is endowed with very strong research & development design and fabrication capability. The technology and performance of the products are in line with state of art. The company has acquired the pressure vessel design and fabrication certificates issued by the Chinese government for Class A1, A2 and C2 pressure equipment and B3 certificate for cylinders, ASME certificate, U & U2 stamps, ISO9001-2008 quality system certification.
In the years of development, the company has gradually formed its four main lines of business, i.e. air separation plants, LNG plants, cryogenic liquid storage and transportation equipment and industrial gases as well as their associated equipment fabrication business. In this way, SASPG has already established a production structures based on the pattern of "Four Main Lines of Business and Diversified Development".
SASPG has always paid great attention to research and development and consistently increased investment to upgrade the technology, such as improving the efficiency of the fabrication facilities and introducing first class international design and manufacturing process soft wares to improve the quality of the products, which have already resulted in remarkable progress. The company can produce more than 200 categories of products with over 1500 different specifications, which can not only be applied in cryogenic field but also in non-cryogenic industry.
The medium and large-sized air separation plants and various cryogenic liquid storage and transportation equipment designed and fabricated by SASPG have maintained the title "Sichuan Provincial Famous Brand" for consecutive 10 years.
SASPG has established excellent marketing and service network in China and has provided a large number of highefficiency energy saving products for metallurgical industry, petrochemical industry, energy industry, chemical industry, machinery industry, electronic industry, light industry, space industry and health industry in China. More than 20 products have filled up the technological gap in China and more than ten different products have entered the international market. SASPG has consecutively maintained the leadership in the air separation field in China. SASPG has the import and export license and the products have already been exported to more than 30 countries and region. The company has already established a good reputation both home and abroad.
Company Strength:
Occupied Area: 800000m2
Floor Space: 300000m2
Company Scale: Large-sized Enterprise in China
Number of Staff: 2500
Number of Technical Personnel: 400
Number of Senior Technical Personnel: 100
Annual Production Capacity: 50000 T
Number of Main Equipment: 950 sets
Transportation Access:
Chengdu-Chongqing High Speed Railway;
Chengdu-Chongqing Railway;
Chengdu-Chongqing Expressway;
Beijing-Hangzhou Canal.
