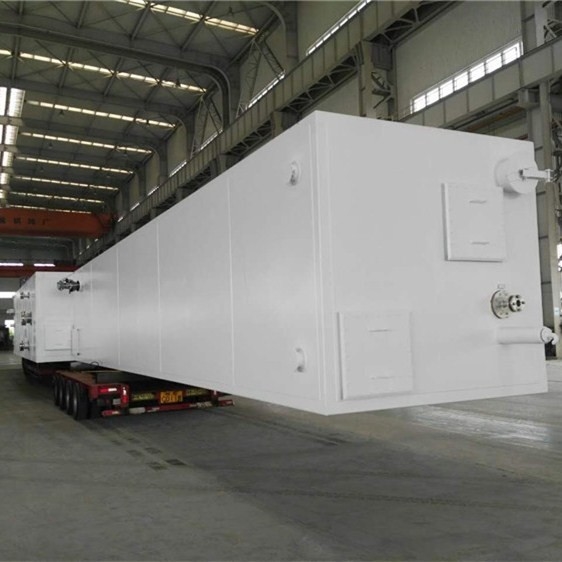

1000L/H LO2 Output PSA Medical Mini Liquid Oxygen Plant 380V

China Sichuan Air Separation Plant Group certification
China Sichuan Air Separation Plant Group certification
I'm Online Chat Now

1000L/H LO2 Output PSA Medical Mini Liquid Oxygen Plant 380V

1000L/H LO2 Output PSA Medical  Mini Liquid Oxygen Plant 380V
1000L/H LO2 Output PSA Medical  Mini Liquid Oxygen Plant 380V

Large Image :  1000L/H LO2 Output PSA Medical Mini Liquid Oxygen Plant 380V

Product Details:
Place of Origin: China
Brand Name: SASPG
Certification: ASME/CE/GB
Model Number: YPN-1000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: container, wooden case ,bulk
Delivery Time: 8months-18months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets / Year

1000L/H LO2 Output PSA Medical Mini Liquid Oxygen Plant 380V

Condition: New Usage: Oxygen
Production Rate: 100% Voltage: 380V-6Kv
Power: According To Its Capacity Weight: According To Its Capacity
Dimension(L*W*H): According To Its Capacity Warranty: 1 Year, 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Medical Oxygen Plant: Hot Medical Oxygen Plant
Purity: 99.6% LO2 Output: 1000L/h
Continuous Operation Period: 1.5 Year LN2 Output: 1000L/h
Brand: Hangtong Medical Oxygen Plant MOQ: 1 Set
Delivery: 3-6 Months Model: YPN-1000
Port: Shanghai
High Light:

1000L/h psa medical oxygen plant


medical oxygen plant 380V


1000L/h mini liquid oxygen plant

Hot Medical Oxygen Plant

Part 1.Main descriptions

This plant operates on a low pressure cycle and is used to produce pure oxygen and nitrogen from air by means of cryogenic rectification. The feed air is first liquefied
by the refrigeration produced by turbo-expander and then rectified for two times on the basis of the different boiling points between liquid oxygen and liquid nitrogen. As
a result, oxygen at a purity of over 99.6% and nitrogen at a purity of over 99.99% can be obtained from the plant. If required, the plant can also produce liquid oxygen and liquid nitrogen partially by means of modified operation.



Part 2. The basic Principle

The basis principle of air separation is to use the different boiling points of the components of liquefied air to separate them. To this end, the air separation plant consists of the following process:

1.    Filtration & Compression

2.    Purification

3.    Cooling Air to Liquefaction Temperature

4.    Refrigeration

5.    Liquefaction

6.    Rectification

7.    Hazardous Substance Removal

 1000L/H LO2 Output PSA Medical  Mini Liquid Oxygen Plant 380V 0

Part 3. About Our Company and Certificates

Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates ,Grade GC1 Pressure Pipe& Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate and U Stamp.


We specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc. Pls feel free to contact us for further information, we are here ready for you!


1000L/H LO2 Output PSA Medical  Mini Liquid Oxygen Plant 380V 11000L/H LO2 Output PSA Medical  Mini Liquid Oxygen Plant 380V 2

Part 4. Why Choose Our Company

1) Our team is highly qualified and experienced;

2) We focus on providing excellent quality products;

3) Our products is energy-saving and environment-friendly;

4) Our price is reasonable and competitive based on the same quality level;

5) Excellent after-sale service.


Part 5: Relevant FAQs of ASU

Q1: I want to buy air separation Oxygen liquid Nitrogen liquid and Argon liquid. Pls send me price?/I am interested in your air separation plant, pls send all your specification to me. Pls give me the proposal of all your air separation plants.

Re: We really appreciate your enquiry on our air separation plant. In order to provide you the right plant, we need to get more information from your side. Pls check the attachment and fill in the air separation plant questionnaire, which will help our engineer to know more about your specified requirement.


Q2: Do you have customers in our country?/ Have you ever sold the plant to our country?

Re: Yes, we have already sold several sets to your countries. However, we all sold them to the agents, so we don’t know which company exactly use our plants. Enclosed you can find small parts of our customers reference. If you come to visit our factory, we will take you to visit our customer’s site.


Q3: Does your quotation include installation cost?

 Re: Actually, our quotation excludes the installation cost. However, we can send engineers to guide you do the live installation and also the commissioning. Your side needs to be responsible for the engineer’s round-trip air tickets, traffic fee, food, communication, insurance and accommodation. Besides, there will be 200USD allowance per day for each person by your side.
