Product Details:
|
| Products: | LOX,LIN, LAR | Material: | Stainless Steel, Carbon Steel, Aluminum |
|---|---|---|---|
| Product Purity: | ≥ 99.5 | Pressure: | 16bar |
| Voltage: | 380V, 220V, 6000V, 10000V | ||
| High Light: | Liquid Oxygen Plant 30TPD,LOX LIN LAR Liquid Oxygen Manufacturing Plant,LOX LIN LAR Liquid Oxygen Plant |
||

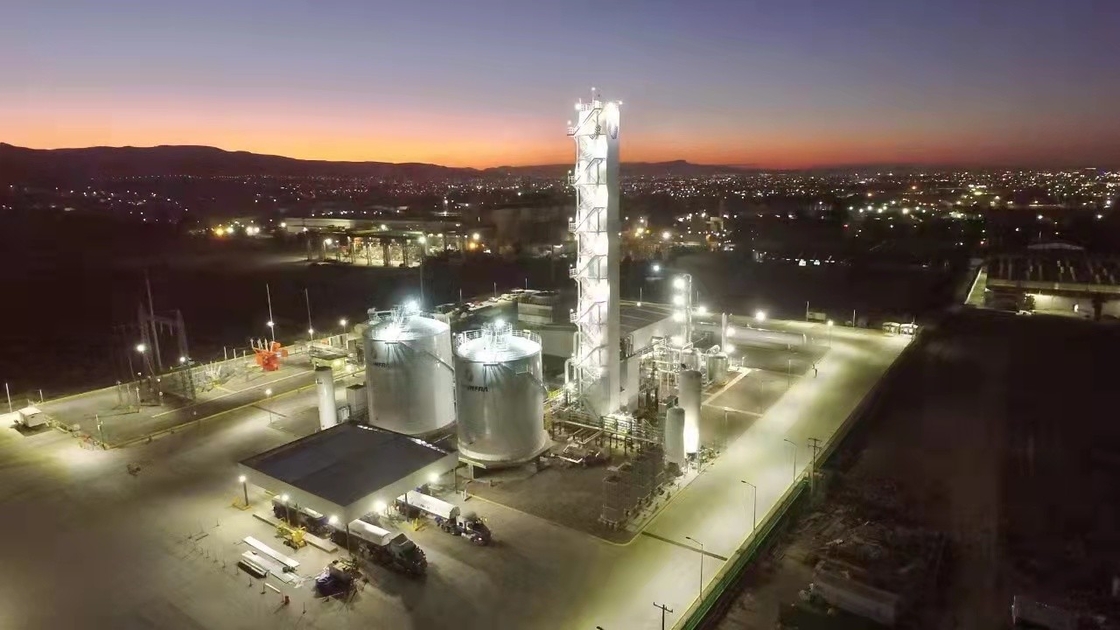

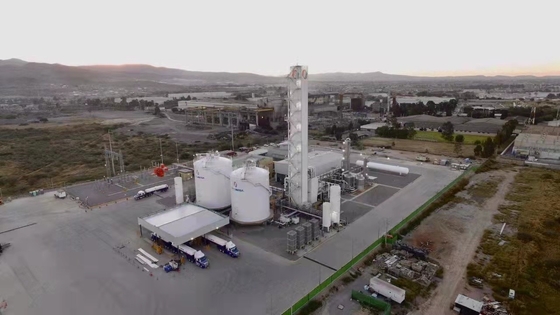

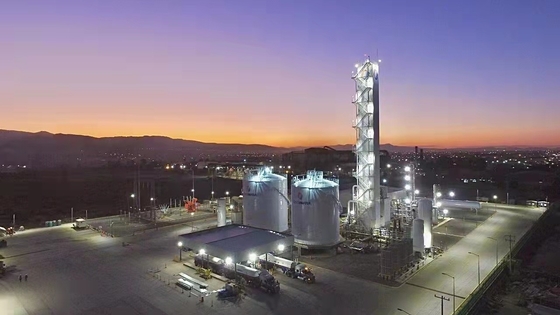

Liquid Oxygen Plant LOX LIN LAR 30TPD-2000TPD
The air separation plant provided by Sichuan Air Separation Plant (Group) Co., Ltd (hereafter called SASPG) is the process with molecular sieve adsorption, nitrogen recycling, booster turbo-expander refrigeration, structural packing upper column, argon extraction without hydrogen.
Scope of Supply
SASPG shall supply, install and commission one complete set of Air Separation Plant. The scope of supply for the individual components of the plant includes the individual component, auxiliary equipment, pipes, valves (with paired flanges) and the corresponding base plate, supporting, inlet/outlet paired flanges and anchor bolts, nuts, etc. and the pipes ,valves and pipe fittings located in the cold box.
| Product | Output (Nm3/h) |
Purity (Volume) |
Pressure barg EX Cold box |
Pressure barg EX B.L |
Temp. EX Cold box (℃) | ||
| Design Case | MAX LOX Case | Max LIN Case | |||||
| GOX | 4375 | - | 6375 | ≥99.5％O2 | 21 | 21 | ~34 |
| LOX | 4375 | 8750 | 2375 | ≥99.5％O2 | 0.3 | - | -183 |
| LIN | 9000 | 3800 | 11000 | ≤2PPmO2 | 0.2 | - | -193 |
| GAN | 3332 | 3332 | 3332 | ≤2PPmO2 | 0.05 | 10.5 | ~34 |
| LAR | 310 | 310 | 270 |
≤2ppmN2 ≤3ppmO2 |
0.2 | - | -183.5 |
