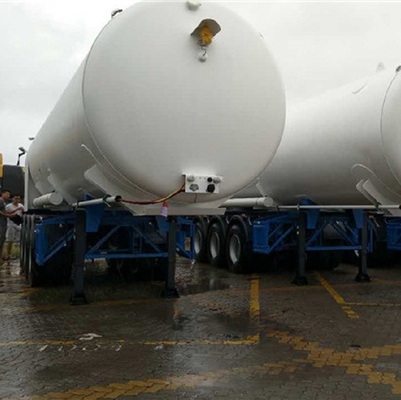

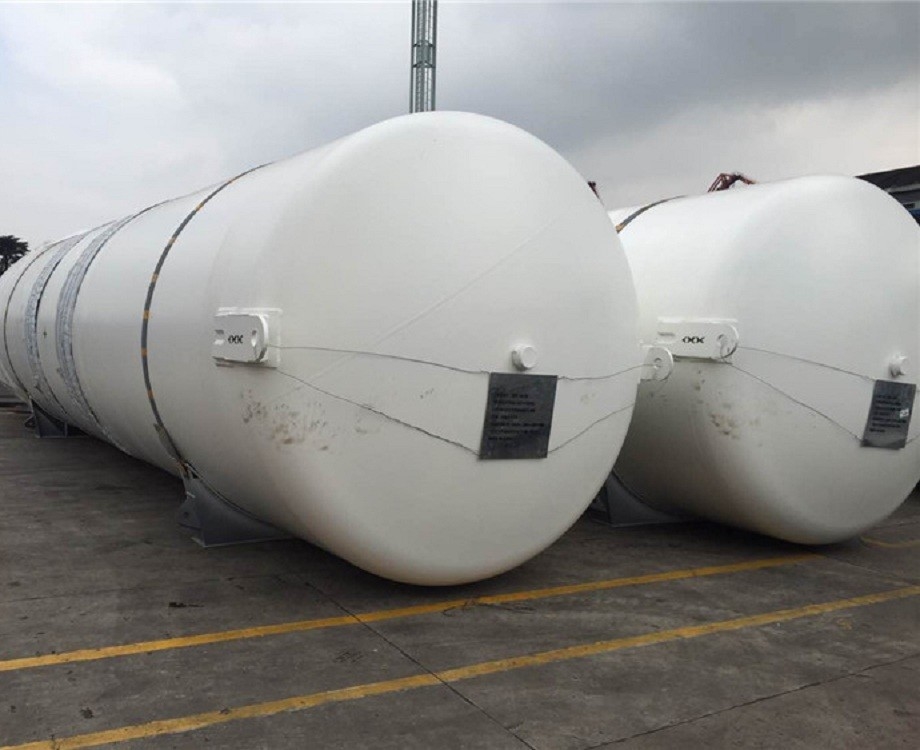

liquid ammonia tank

liquid ammonia tank
liquid ammonia tank liquid ammonia tank liquid ammonia tank

Large Image :  liquid ammonia tank

Product Details:
Place of Origin: China
Brand Name: SASPG
Certification: ASME/CE/GB
Model Number: CF-15/22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: container, wooden case ,bulk
Delivery Time: 8months-18months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets / Year

liquid ammonia tank

Condition: New Capacity: 15m3
Dimension(L*W*H): ~7800*2438*2591mm Weight: ~12500kg
Warranty: One Year After-sales Service Provided: No Overseas Service Provided
Model: ZCF-25M3 Brand: Hang Tong
Pressure: 0.8Mpa Color: White
Safety Valve Set Pressure: 22.7bar Insulation Methoned: Vaccum Powder
Design Temperature: -40°C Mainbody Material: 16MnDR/Q235-B
Design Pressure: 22.7bar Geometric Volume: 15.07m3
Port: Shanghai

Liquid ammonia tank

liquid ammonia tank 0

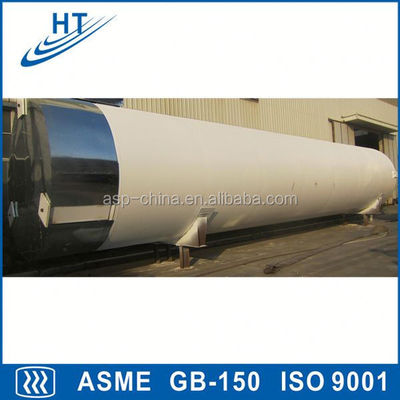

Product: Cryogenic liquid storage tank


1 Main technical parameter

Available volume                                                          25m3

Geometric volume                                                      26.31m3

Max working pressure                                                8bar

Insulation method                                           Vacuum powder

Design temperature                                                   -196°C

Medium                                                                    LO2

Main body material                                               0Cr18Ni9/Q235-B

Dimension                                                            ~2616x10187mm

Empty weight                                                           ~12625Kg
