Product Details:
|
| Condition: | New | Capacity: | 17m3, 20M3 |
|---|---|---|---|
| Dimension(L*W*H): | 2416*2416*9032mm | Weight: | ~13862kg |
| Warranty: | One Year | After-sales Service Provided: | No Overseas Service Provided |
| Horizontal Cryogenic Storage Tank: | Horizontal Cryogenic Storage Tank | Medium: | LCo2 |
| Working Pressure: | 22bar | MOQ: | 1 Set |
| Brand: | Hang Tong Horizontal Cryogenic Storage Tank | Material: | 16MnDR/Q235-B |
| Type: | Horizontal | Insulation: | Vacuum Powder |
| Delivery Time: | 100 Days After Receiving Advance Payment | Port: | Shanghai |
| Highlight: | lng cryogenic tank 20m3,Q235-B lng cryogenic tank,vertical liquid storage tank 20m3 |
||

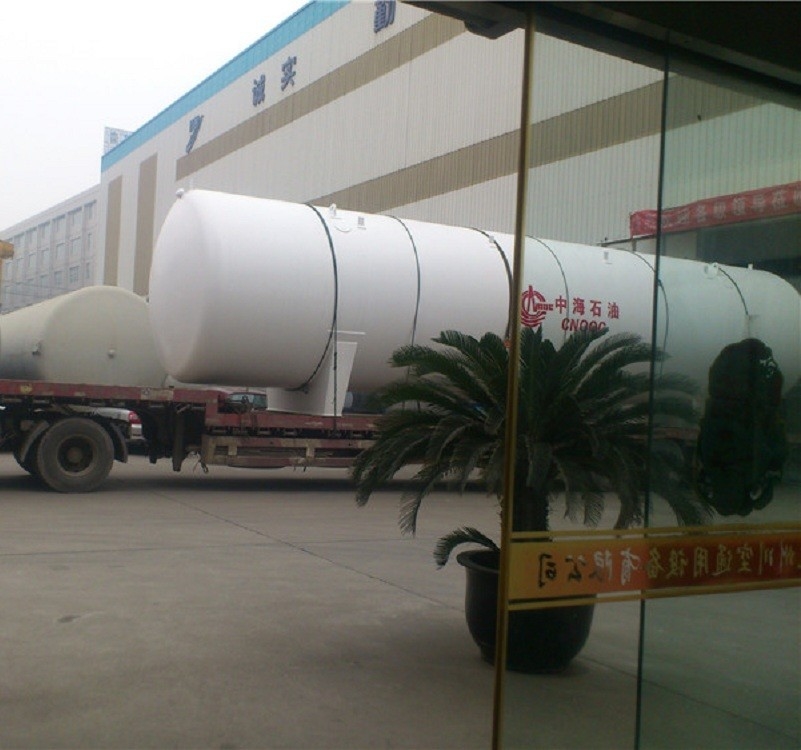

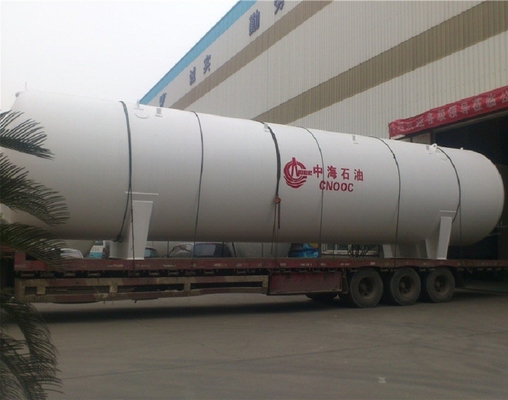

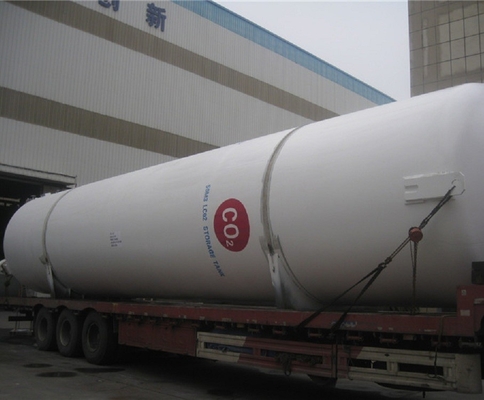

lng cryogenic storage tank system ar cryogenic liquid storage tank vertical liquid storage tank
Model: CF-20/22
Available volume: 20m3
Geometric volume: 21.05m3
Max working pressure: 21.6bar
Insulation method: Vacuum powder
Design temperature: -40°C
Medium: LCO2
Main body material 16MnDR/Q235-B
Safety valve set pressure: 22.7bar
We specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.
Kindly advise us the capacity,working pressure, medium for the storage tank you are looking for. Thanks a lot.
