Product Details:
|
| Condition: | New | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Food & Beverage Shops |
|---|---|---|---|
| Max Working Pressure(MPa): | 2.2 MPa | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel |
| Capacity: | 17m3 | Dimension(L*W*H): | 2416*2416*9032mm |
| Weight: | 13862 | Warranty: | One Year |
| Key Selling Points: | Long Service Life | Showroom Location: | None |
| After-sales Service Provided: | No Overseas Service Provided | Medium: | LCo2 |
| Working Pressure: | 22bar | Material: | 16MnDR/Q235-B |
| Type: | Horizontal | Insulation: | Vacuum Powder |
| Delivery Time: | 100 Days After Receiving Advance Payment | Port: | Shanghai |
| High Light: | 17m3 Cryogenic Storage Tank,2.2MPa liquid co2 tanks,17m3 liquid co2 tanks |
||

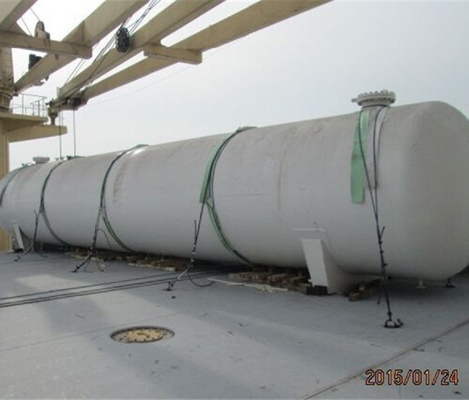

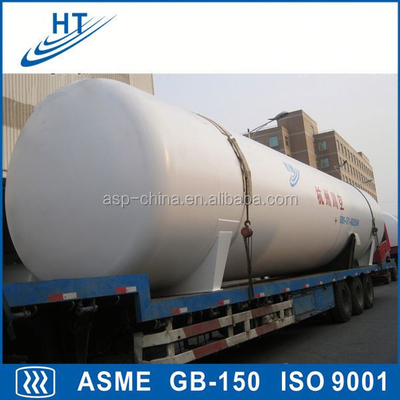

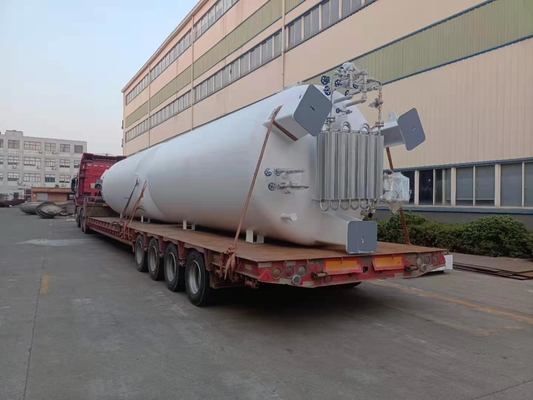

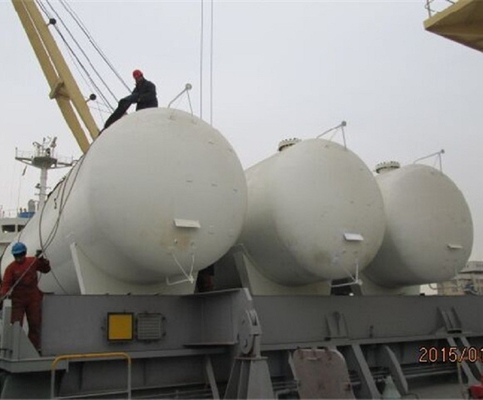

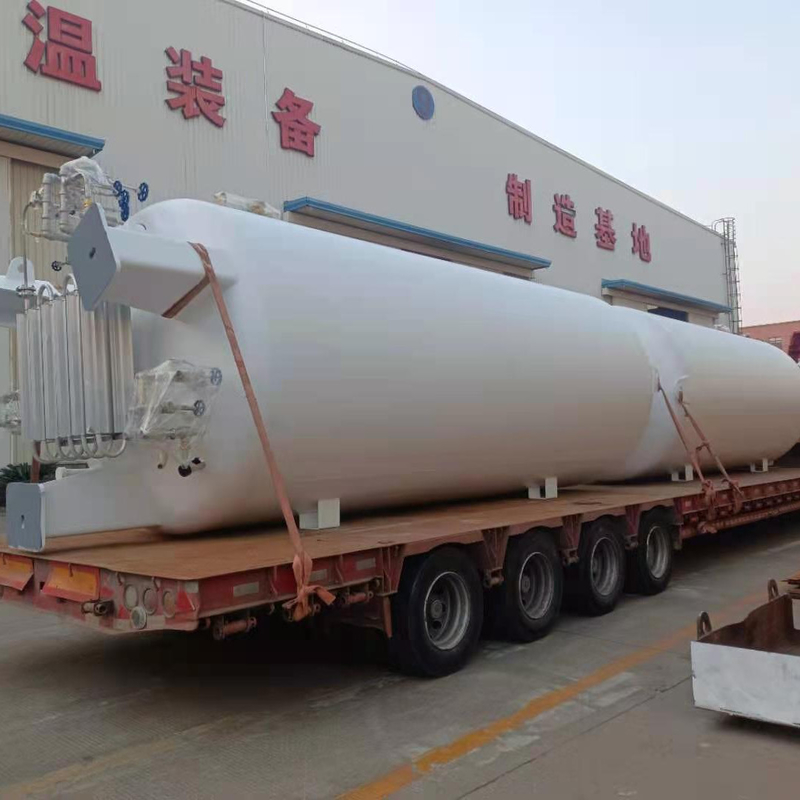

cryogenic liquid oxygen tank cryogenic storage tank liquid co2 tanks
Model: CF-20/22
Available volume: 20m3
Geometric volume: 21.05m3
Max working pressure: 21.6bar
Insulation method: Vacuum powder
Design temperature: -40°C
Medium: LCO2
Main body material 16MnDR/Q235-B
Safety valve set pressure: 22.7bar
We specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.
Kindly advise us the capacity,working pressure, medium for the storage tank you are looking for. Thanks a lot.
