Product Details:
|
| Product Name: | Small Scale LNG | Material: | Stainless Steel, Carbon Steel, Aluminum |
|---|---|---|---|
| Condition: | New | Purity: | 99.999% |
| Liquefaction Capacity: | 489,000Nm3/d | ||
| High Light: | 99.999% Small Scale LNG,LNG liquefaction plant 365t/D,small scale LNG liquefaction plants |
||

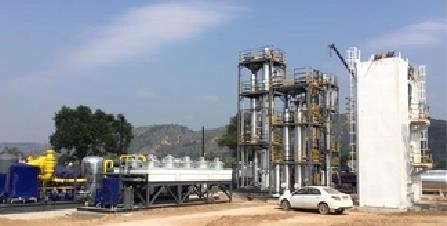

99.999% Small Scale LNG Liquefaction Plant Associated Gas 365t/D
Natural Gas (Associated Gas) Liquefaction and Separation Plants
Main Sizes:
50,000, 70,000, 100,000, 150,000, 200,000, 300,000, 500,000, 800,000, 1,000,000, 2,000,000 and 5,000,000 Nm3/d
SASPG’s 500,000Nm3/d project won the National Highest Quality Reward--Gold Medal
SASPG 2 million Nm3/day Plant in Erdos is the largest LNG plant built by Chinese Supplier
Now SASPG has a capability to liquefy 12million Nm3 natural gas per day.
1. Capacity 1) flow of natural gas incoming station 500,000Nm3/d
2) Liquefaction capacity 489,000Nm3/d
3) Venting acid gas 2,653Nm3/d
4) Turndown Ratio 50-110%
5) Continuous Operation Time ≥8,000h
6) Static Equipment Service Life 20 years
2. LNG Product Specifications 1) Output 365t/d (836m3/d) equivalent gas volume: 48.9 × 104Nm3/d 2) Temperature -161℃ 3) Storage Pressure 15kPa 4) Main Component CH4: 95.82%,C2H6: 2.69%,C3H8: 0.82%, N2: 0.53% 3. Side product heavy hydrocarbon 1) Output 2.1t/d(3.6m3/d) 2) Temperature 25℃ 3) Storage Pressure 0.6MPa 4) Main Component CH4: 2.08%,C2H6: 2.79%,C3H8: 7.3%,i-C4: 7.62%,n-C4: 46.85%,C5+: 33.36%
