Home ProductsCryogenic Storage Tank

Widely used 100m3 tank food grade liquid carbon dioxide storage tank

Certification
China Sichuan Air Separation Plant Group certification
China Sichuan Air Separation Plant Group certification
I'm Online Chat Now

Widely used 100m3 tank food grade liquid carbon dioxide storage tank

Widely used 100m3 tank food grade liquid carbon dioxide storage tank
Widely used 100m3 tank food grade liquid carbon dioxide storage tank Widely used 100m3 tank food grade liquid carbon dioxide storage tank Widely used 100m3 tank food grade liquid carbon dioxide storage tank Widely used 100m3 tank food grade liquid carbon dioxide storage tank Widely used 100m3 tank food grade liquid carbon dioxide storage tank Widely used 100m3 tank food grade liquid carbon dioxide storage tank

Large Image :  Widely used 100m3 tank food grade liquid carbon dioxide storage tank

Product Details:
Place of Origin: China
Brand Name: SASPG
Certification: ASME/CE/GB
Model Number: ZCF-100/22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: container, wooden case ,bulk
Delivery Time: 8months-18months
Payment Terms: L/C, T/T
Supply Ability: 50 Sets / Year

Widely used 100m3 tank food grade liquid carbon dioxide storage tank

Description
Condition: New Capacity: 3.5m3, 3.5m3/60000liters
Dimension(L*W*H): 1812*1812*4711mm Weight: 2900kgs
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Item: Cryogenic Pressure Tank (LO2,LN2,LAr) Medium: LO2,LN2,LAr
Working Pressure: 8bar/16bar Type: Vertical/horizontal
Color: White Insulation: Vacuum Powder
Application: Liquid Storage Tank MOQ: 1 Unit
Port: Shanghai

Widely used 100m3 tank food grade liquid carbon dioxide storage tank




Main Parameters
1. Storage medium: LO2, LN2, LAr, LCO2 or LNG.
2. Working pressure: 0.2MPa-3MPa
3. Working temperature: determined by the medium
4. Effective capacity: 3m3-20000m3
5. Manufacturing standards: A2, C2, GC1, GB-150, ASME, U STAMP, ISO9001:2008



Applications
The vacuum insulated cryogenic tank is widely used in machinery, chemical, chemical fiber, medical, food, metallurgy, mining, electronic and military industries.


Features
1. good durability and security.
2. compact structure, small footprint, centralized control.
3. excellent heat preservation, small evaporation loss.
4. easy operation and maintenance.

Product Overviews

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 0

Product Name Widely used 100m3 tank food grade liquid carbon dioxide storage tank

Model

Storage medium

Effective volume(m3)

Max working pressure (Mpa)

Main material

Dimension (mm)

ZCF-20000/8

LO2,LN2,LAr

20

0.78

06Cr19Ni10/
Q245-R

2416X10106

ZCF-50000/8



LO2,LN2,LAr

50

0.92

06Cr19Ni10/
Q245-R

 3124X12731


ZCF-100000/8



LO2,LN2,LAr

100

0.92



06Cr19Ni10/
Q245-R



3624X17355

CF-25000/6

LNG

25

0.6

06Cr19Ni10/
Q245-R

2420X11000

ZCF-5/22

LCO2

5

2.16

16MnDR/
Q245-R

2016X4942



Widely used 100m3 tank food grade liquid carbon dioxide storage tank 1

Related Products
Widely used 100m3 tank food grade liquid carbon dioxide storage tank 2

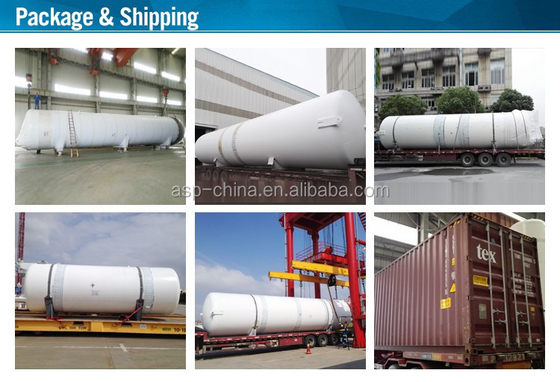

Packaging

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 3

Item Delivery time
Tank 3-4 months
Trailer 4 months
Cryogenic liquid pump 10 days to 1 month
Vaporizers 15 days
Complete set of equipment 3-10 months
Dry ice machine 25 days



Our Customers

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 4Widely used 100m3 tank food grade liquid carbon dioxide storage tank 5

We are proud to have an experienced and passionate elite team. We have always been a pioneer in the industry, to keep competitive in the world market. Our team will be constantly committed to exploring the gas field, providing customers with a variety of tailor-made solutions for air resource exploitation.

Culture

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 6

As a top two brand in cryogenic equipment with almost 50 years history, We specialize in producing air separation units, LCO2 recovery plants, LNG plants, cryogenic liquid storage tanks(LO2, LN2, LAr, LCO2, LNG and LPG), cryogenic mobile tanks, semi-trailer tankers, vaporizers, gas filling stations,gas cylinders and dewars, dry ice making machines, dry ice blasting machines and cryogenic pumps etc.

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 7

In the gas equipment field, we are proficient in both design and manufacture, enjoying a good reputation worldwide. By our consistent efforts, we turned the invisible air into visible brilliance. With 50 years of experience, we can provide customers with a complete range of products and the most professional services. Taking advantage of the group company structure, we have an in-depth and comprehensive understanding of market. Customers can get all they need at one-stop purchase.

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 8

Widely used 100m3 tank food grade liquid carbon dioxide storage tank 9

Our Mission:
Professional staffs are employed to serve the customers. The high quality and low price can ensure the customer dominating the marketing.



FAQ

Buyer Reading


1. Q: What products I can order from your company?

Re: We specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, LPG and LNG filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc. Any interests you can feel to contact us for details. Thanks.

2. Q: What is your production standard? Can you manufacture your products under ASME standard?

Re: Our products are designed, manufactured and tested as per reference standards of GB150, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards.

Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates, Grade GC1 Pressure Pipe& Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.

3. Q: What’s the difference between Chinese GB standard and ASME standard?

Re: Our GB standard on PV is equivalent to ASME VIII and GB electrical standards are equivalent to IEC standards, for electrical products.

The following are used by European countries for export in Gulf and all of them have equivalent Chinese standards as per WTO rule.
- DIN-Standards
- VDI/VDE-Regulations
- IEC-Standards
- AD-Specifications
- UVV-Regulations

We can send you a document specifying relationship between GB150 and ASME on your request.

4. Q: Have you supplied tanks to any renowned companies?

Re: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank. We also made high pressure storage vessels for them, such as 100m3 LCO2 tanks, 10m3 (20m3, 30m3)LO2 (LN2, LAR) tanks.

As a giant cryogenic equipments company with more than 40 years history, we are a top two manufacturer producing air separation plants in China. The biggest air separation plant we have ever made is 60,000Nm3/h, famous for its advanced technology and reliable performance.
