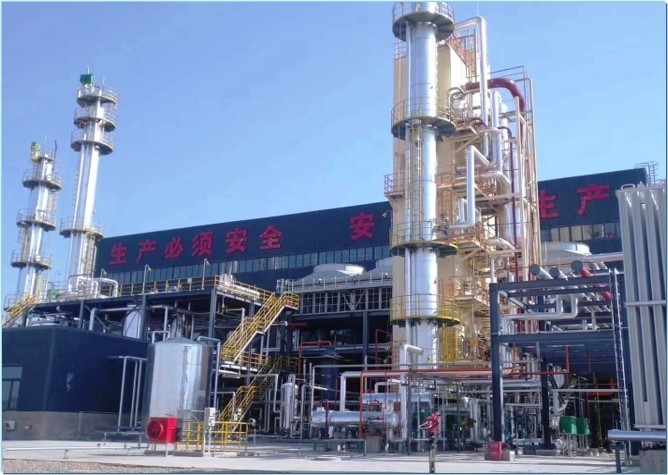

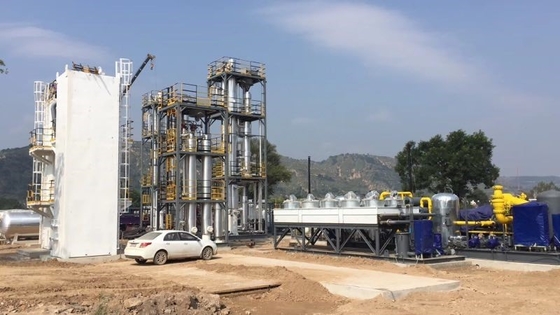

LNG Peak Shaving Liquefaction Plant Small Scale LNG 50000 Nm3/D

LNG PLANT 50,000 Nm3/d , 1,000,000 Nm3/d, 2,000,000 Nm3/d and 5,000,000 Nm3/d

SASPG has developed the natural gas (associated gas) liquefaction and separation technology since 1970s. SASPG Natural Gas Engineering Co., Ltd was founded in 2004 who is specialized in purification and separation of nature gas, coalbed methane, coal-to-gas, coke oven gas and different kinds of various chemical gases, and process design, complete set of equipment supply, EPC, commission supervision, operator training of liquefaction engineering. The company has obtained B qualification for chemical industry engineering design.

The 500,000Nm3/d associated gas separation plant made by SASPG was awarded the Second Prize for Scientific and Technological Achievements and China National Quality Golden Prize.

Since 1998, SASPG has exported to Southeast Asia 2 sets of natural gas liquefaction/separation plants with capacity of 45×104Nm3/d, 28×104Nm3/d respectively, to Europe 1 complete set of natural gas de-nitrification and liquefaction plant with capacity of 100t/d. SASPG has undertaken the research for 2,600,000 T/year LNG localization project issued by the China National Energy Bureau and supplied 6 complete sets of 10×104Nm3/d~30×104Nm3/d LNG plants and 14 complete sets of 50×104Nm3/d~500×104Nm3/d LNG plants.

Process Capacity
1. Inbound natural gas	2470Nm3/h
2. Liquefying output	2370Nm3/h
3. Venting Acid Gas	43Nm3/h
4. Heavy hydrocarbon products	2040 kg/d, or ~ 33 Nm3/h if converted to gas phase
5. Heavy hydrocarbon flash vapor	24Nm3/h (as fuel gas)
6. Operating elasticity	50~105%
7. Service life of stationary equipment	20 years
II. LNG Specifications
Output	43 t/d(96m3/d)
Temperature (℃)	-161
Operating pressure (kPa)	15
Main components (cold box outlet)	CH4:92.43%；C2H6:5.70%；C3H8:1.08%,N2:0.77%；C4+:0.02%
